UNIVERSAL HUB� Combo of Pam8403 with TP4056 Micro USB 5V 1A Charger Module with Bluetooth Chip Audio Receiver and PAM8403 Stereo Amplifier Kit

Combo of Pam8403

To connect the PAM8403 audio amplifier module, TP4056 lithium battery charging module, and Bluetooth receiver chip together, you will need to follow these steps:

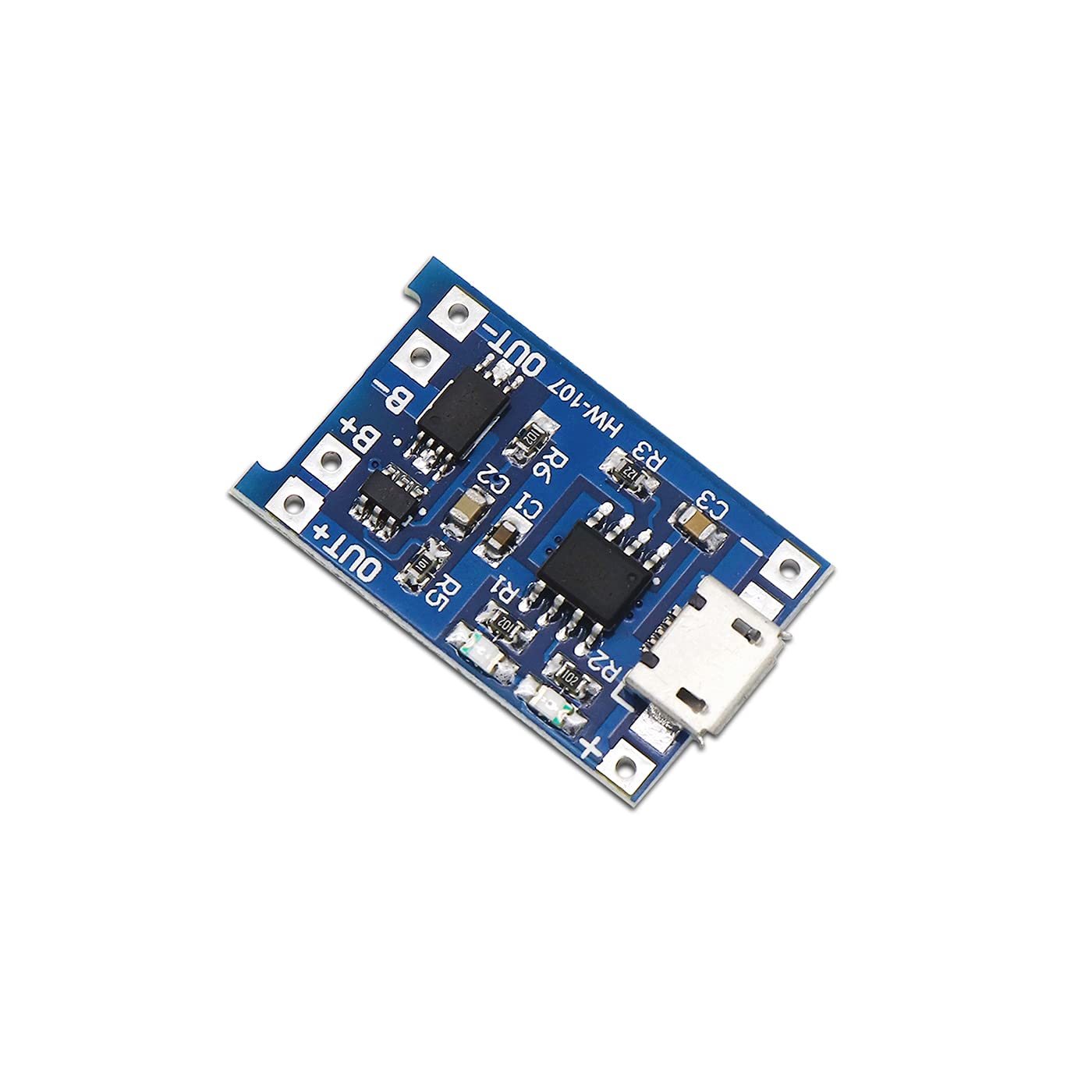

1. Power supply: Connect the 5V output of the TP4056 module to the VCC input of the PAM8403 module, and connect the GND output of the TP4056 module to the GND input of the PAM8403 module. This will provide power to the audio amplifier module.

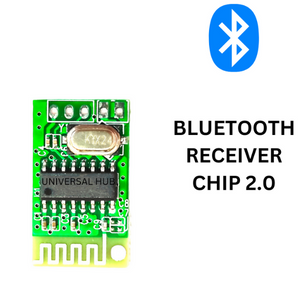

2. Audio input: Connect the audio output of the Bluetooth receiver chip to the audio input of the PAM8403 module using a 3.5mm audio jack.

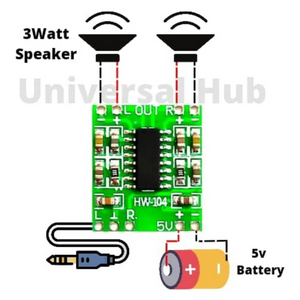

3. Speaker output: Connect the speaker or headphone output of the PAM8403 module to your speakers or headphones.
4. Charging: Connect the lithium battery to the output pins of the TP4056 module.
5. Bluetooth connectivity: Pair the Bluetooth receiver chip with your Bluetooth-enabled device (such as a smartphone or tablet) according to the manufacturer's instructions.
